[Please contact us for the up-to-date price]

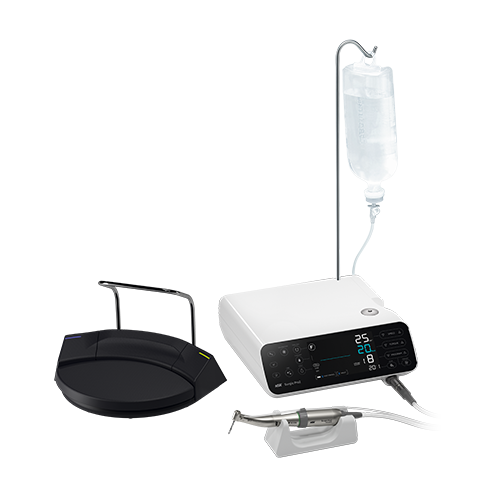

The Essential Ultrasonic Bone Surgery System for Implant Treatments
With pioneering high power ultrasonic technology and a diverse lineup of tips for various procedures, the VarioSurg 4 allows for swift and intricate bone removal and shaping. It minimizes damage to surrounding soft tissue and reduces invasiveness compared to conventional bone and micro saws. The unit also offers advantages like wireless foot control integration and compatibility with Surgic Pro2.

Includes:
- Control Unit
- LED Handpiece with 2m cord
- FC-86 Foot Control
- Sterilisation Cassette
- Handpiece Stand
- Irrigation tube (3 pcs.) and other accessories
- Basic H-S Kit (H-SG1, SG3, SG5, SG6D, SG7D, SG11 and Tip holder)

• Product Features
• Specifications
• Usage Instruction

•

• [Control Unit]
  • Frequency : 28-32 kHz
  • Power Supply : AC100 - 240V 50/60 Hz
  • Max. Pump Output : 76 mL / min
  • Programs : SURG x 5, ENDO x 2, PERIO x 2
  • Dimensions : W 245 x D 235 x H 90 mm

Easily change of solution bottles.

Designed for easy on-site maintenance.

Eye-friendly icons for Endo, Perio and General mode.

• Product Features
• Specifications
• Usage Instruction

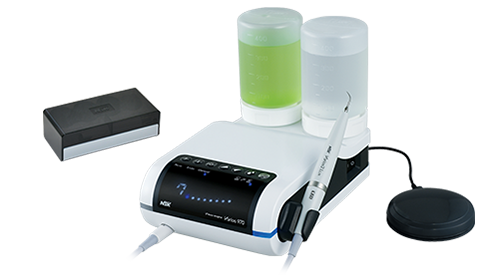

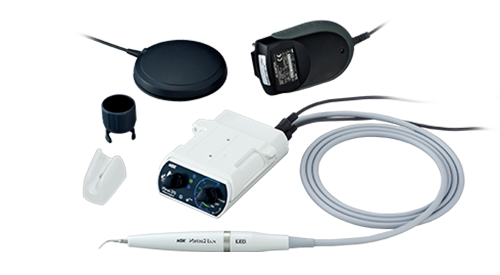

• Includes:
  - 1 * Control Unit

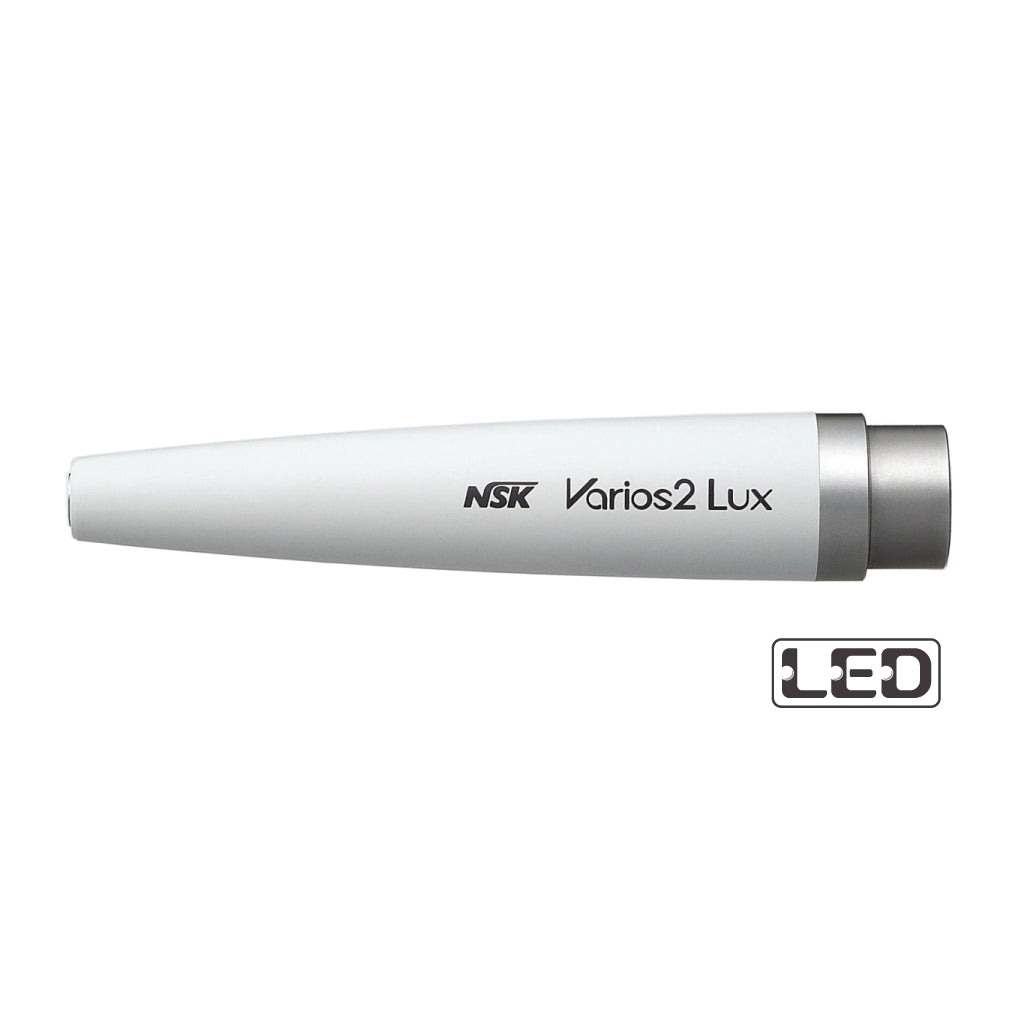

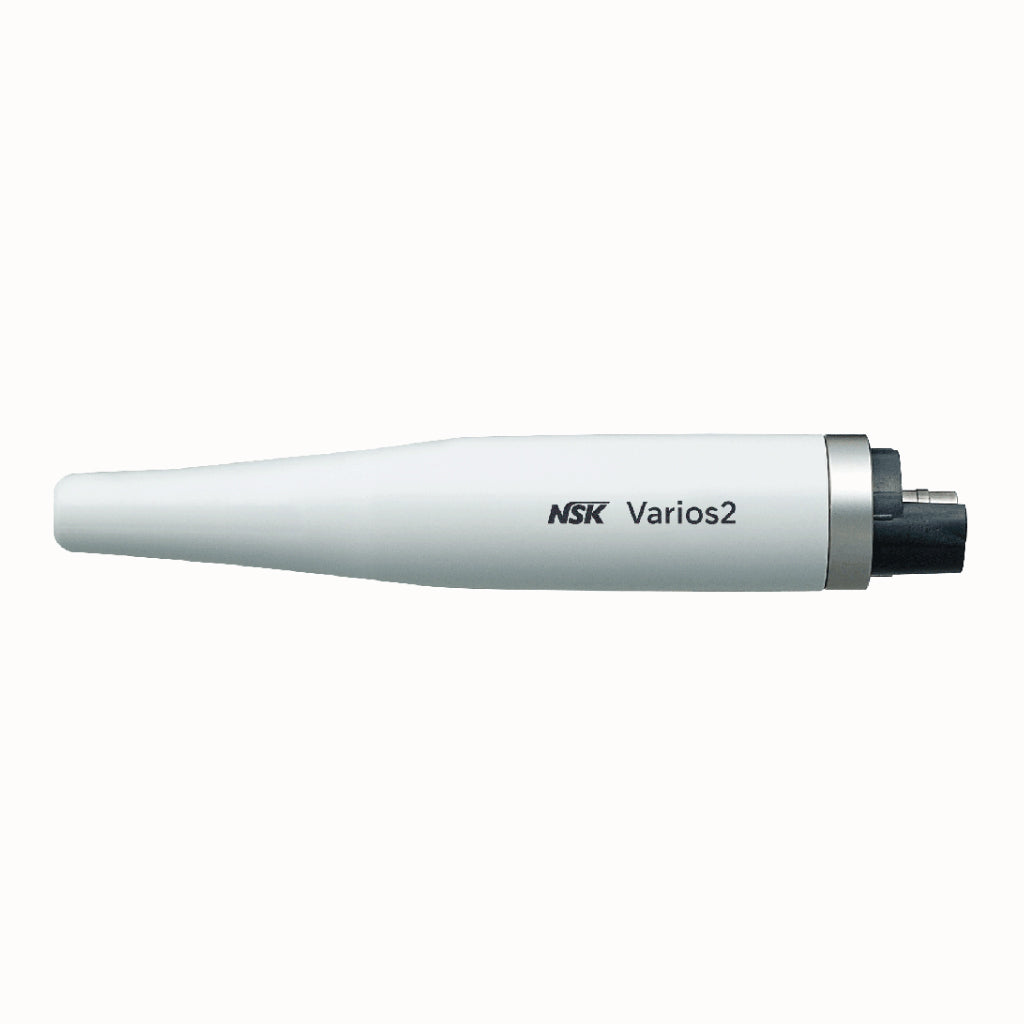

  - 1 * Handpiece (Optic: VA2-LUX-HP / Non-Optic: VA2-HP)

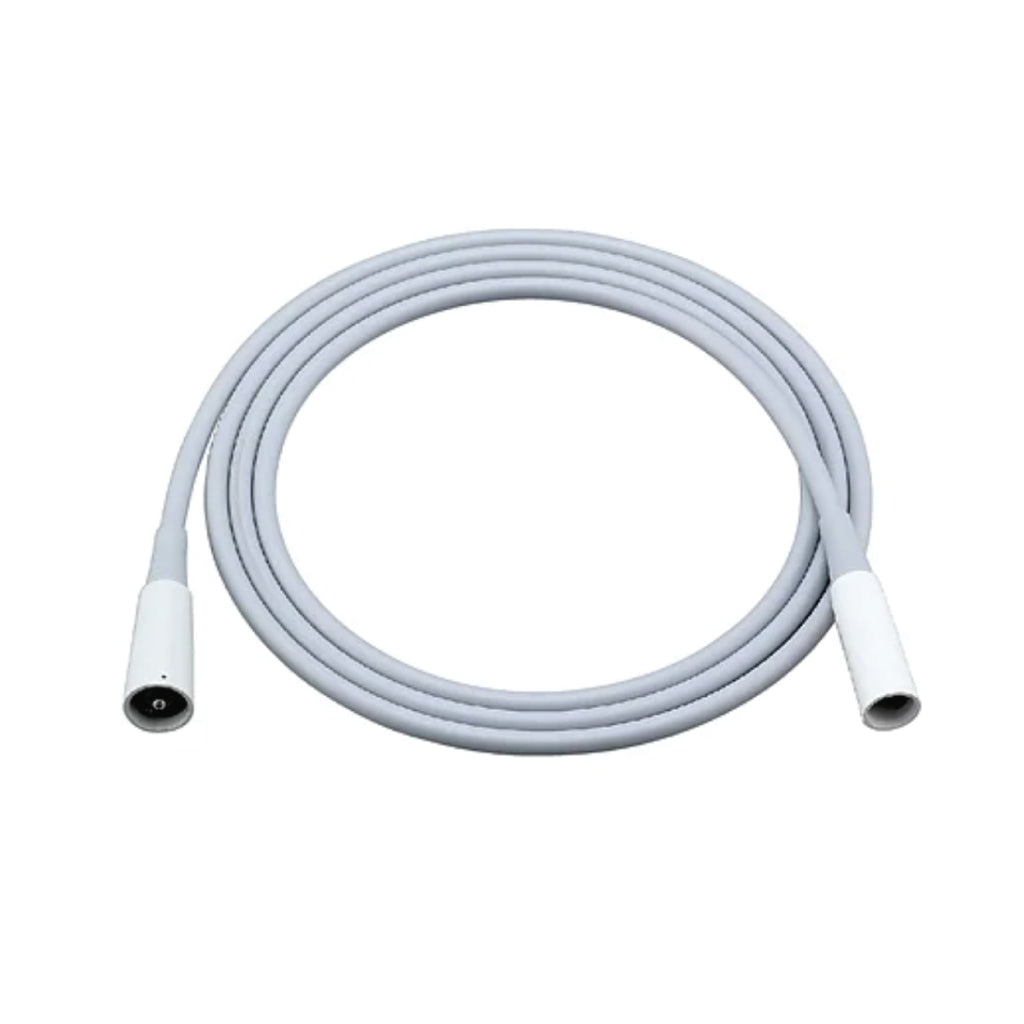

  - 1 * Handpiece Cord
  - 1 * Foot Control (FC-70)
  - 1 * Sterilization Case
  - 1 * AC Power Cord
  - 2 * Irrigation Bottles
  - 3 * Scaling Tips (G4, G6, G8)
  - 3 * Tip Wrench with Torque Limiter



• Specifications
  Power Supply : AC 120 V or 230 V 50/60 Hz

  Frequency : 28-32 kHz

  Max. Output : 11 W (G mode)

  Dimensions : W 160 x D 270 x H 190 mm (Including Bottle)
  Unit Weight : 2.1 kg (Except Attachment)

  Bottle Volume : 400 mL (x 2 Bottles)

Easily change of solution bottles.

Designed for easy on-site maintenance.

Eye-friendly icons for Endo, Perio and General mode.

• Product Features
• Specifications
• Usage Instruction

• Includes:

  - 1 * Control Unit
  - 1 * Handpiece (Optic: VA2-LUX-HP / Non-Optic: VA2-HP)
  - 1 * Handpiece Cord
  - 1 * Foot Control (FC-70)
  - 1 * Sterilization Case
  - 1 * AC Power Cord
  - 2 * Irrigation Bottles
  - 3 * Scaling Tips (G4, G6, G8)
  - 3 * Tip Wrench with Torque Limiter



• Specifications
  Power Supply : AC 120 V or 230 V 50/60 Hz

  Frequency : 28-32 kHz

  Max. Output : 11 W (G mode)

  Dimensions : W 160 x D 270 x H 190 mm (Including Bottle)
  Unit Weight : 2.1 kg (Except Attachment)

  Bottle Volume : 400 mL (x 2 Bottles)

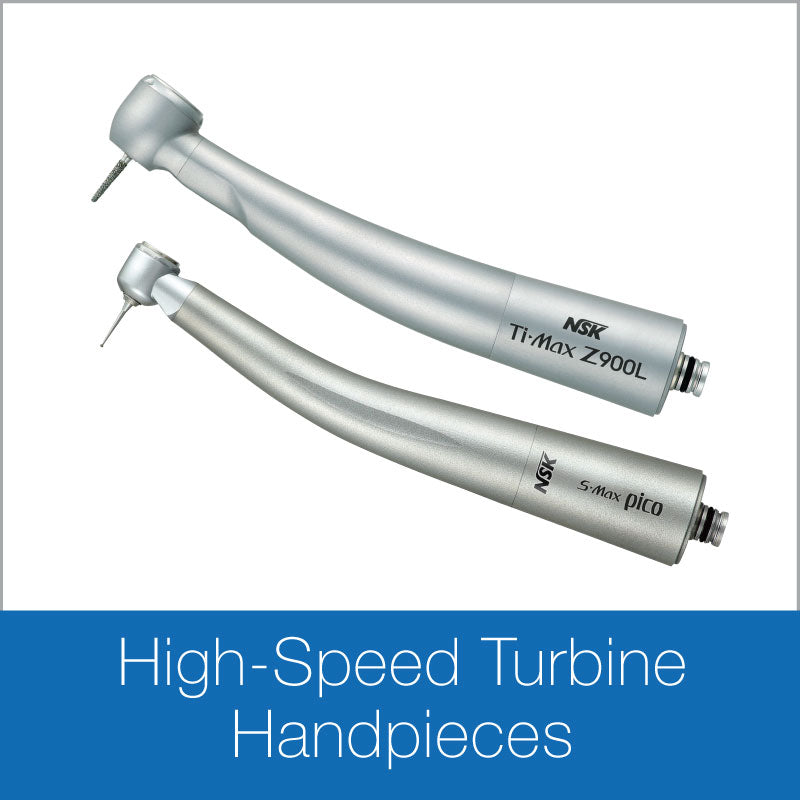

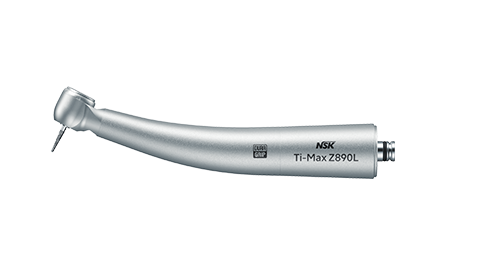

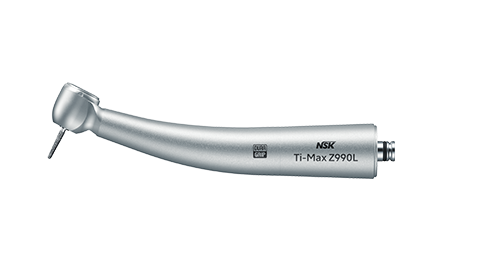

The Ti-Max Z Premium Series of Air-Driven High-Speed Handpieces offer a powerful cutting power. The new Dynamic Power System ensures a superior degree of smoothness during cutting operations with an extended power cylinder, expanded roto bucket and expanded exhaust groove.

Operability and visibility are significantly improved by the 100-degree angled head. Solid titanium body is 30% lighter than stainless steel and comes with scratch resistant DURAGRIP. Chuck has double bur gripping power. Contamination reduction provided with the NSK’s DualDefense System with the Clean Head System and the Anti-Retraction Valve. Equipped with Cellular Glass Optics, Ceramic Bearings, Push Button Chuck and Quattro Spray.

Packing:
Each

• Product Features
• Specifications
• Usage Instruction

• Unprecedented Power of 44W / DYNAMIC POWER SYSTEM / DURAPOWER CHUCK / Ceramic Bearings / Cellular Glass Optics / Clean Head System / Quick Stop / Push Button Chuck / Simple Cartridge Change / Microfilter / Head at a 100° angle

  NSK Ti-Max Z990/890 Air Turbine Promotion Video vs Competitor
  NSK Ti-Max Z990/890 Air Turbine Unprecedented Power (Competitor)


  NSK Ti-Max Z990/890 Air Turbine DURAPOWER CHUCK



• Head : Standard Head

  Power : 44 W
  Rotation : 280,000-360,000 min-1
  Head Size : ø12.1 x H 12.7 mm
  Water Spray : Quattro Spray
  Body Material : Titanium
  Body Coating : DURAGRIP







  -Unprecedented Power of 44W
  Experience like never before, the unprecedented cutting power of the industry's best-in-class 44W turbine as it delivers unprecedented cutting strength. Makes zirconia removal easy, reducing chairside time and minimising patient discomfort.




  -DYNAMIC POWER SYSTEM
  Equipped with a new system, the “DYNAMIC POWER SYSTEM” that provides a revolutionary cutting feel. The enlarged exhaust port, optimized nozzle structure, and enlarged rotor bucket achieve the highest rotational power in its category.

  -DURAPOWER CHUCK
  Equipped with “DURAPOWER CHUCK” a new chuck* that provides a more sustained gripping force, to reduce the risk of a bur slipping compared to conventional models.
  *The chuck is the part of the handpiece that holds the bur (cutting tool). The new improved chuck mechanism has improved durability.

  -New quick-stop function
  A new design furnished with a high-speed rotation emergency stop function on the front and back of the air turbine head reduces the risk of intraoral entrapment and suck-back, enabling safer treatment.

  -New 4-port water spray
  Efficiently cools the entire bur without impairing visibility. Water injected from two directions allows for proper cooling of burs of varying lengths.





  -100° angle head
  Considering the physiological curves of the oral cavity (Curve of Spee and Curve of Wilson), the 100° angled head enables easier access and high-torque cutting for efficient treatment in the oral cavity.

  -Slip-resistant DURAGRIP coating
  The unique non-slip, non-scratch surface treatment improves durability and ensures a comfortable grip.

  -Wide Fitting
  This lineup features models that are compatible with couplings of all companies, and can be connected to units currently in use. With this design, you can easily use the ultimate NSK handpieces without being tied down to a particular unit.
  *Compatible couplings differ depending on the series.

  -Microfilter

  Microfilter to prevent particles from entering the water spray system to guarantee optimum water spray cooling at all times.

-NSK have dramatically improved visibility and accessibility by minimising the head size, a key challenge with quintuple speed contra angles. NSK’s dedication to usability resulted in outstanding ergonomics and manoeuvrability.
-NSK has combined advanced design and world-class processing technology to create incredibly durable instruments.
-The gear is coated with special diamond-like carbon to make wear resistance up to five times greater than on previous models.
-NSK’s advanced technologies have boosted sterilisation resistance, delivering even better reliability for dental practices.

Packing:
Each

Brochures
Ti-Max Z95L

• Product Features
• Specifications
• Usage Instruction

• Introdution of Ti-Max Z Contra-angle










•


The Ti-Max Z Premium Series of Air-Driven High-Speed Handpieces offer a powerful cutting power. The new Dynamic Power System ensures a superior degree of smoothness during cutting operations with an extended power cylinder, expanded roto bucket and expanded exhaust groove. Operability and visibility are significantly improved by the 100-degree angled head. Solid titanium body is 30% lighter than stainless steel and comes with scratch resistant DURAGRIP. Chuck has double bur gripping power. Contamination reduction provided with the NSK’s DualDefense System with the Clean Head System and the Anti-Retraction Valve. Equipped with Cellular Glass Optics, Ceramic Bearings, Push Button Chuck and Quattro Spray..

Packing:
Each

• Product Features
• Specifications
• Usage Instruction

• Unprecedented Power of 41W / DYNAMIC POWER SYSTEM / DURAPOWER CHUCK / Ceramic Bearings / Cellular Glass Optics / Clean Head System / Quick Stop / Push Button Chuck / Simple Cartridge Change / Microfilter / Head at a 100° angle

  NSK Ti-Max Z990/890 Air Turbine Promotion Video vs Competitor
  NSK Ti-Max Z990/890 Air Turbine Unprecedented Power (Competitor)


  NSK Ti-Max Z990/890 Air Turbine DURAPOWER CHUCK



• Head : Miniature
  Head Power : 41W
  Rotation：320,000-400,000 min^-1
  Head Size : ø10.6 x H 10.8 mm
  Water Spray : Quattro Spray
  Body Material : Titanium
  Body Coating : DURAGRIP

  -Unprecedented Power
  Experience like never before, the unprecedented cutting power of the industry's best-in-class 41W turbine as it delivers unprecedented cutting strength. Makes zirconia removal easy, reducing chairside time and minimising patient discomfort.

  -DYNAMIC POWER SYSTEM
  Equipped with a new system, the “DYNAMIC POWER SYSTEM” that provides a revolutionary cutting feel. The enlarged exhaust port, optimized nozzle structure, and enlarged rotor bucket achieve the highest rotational power in its category.

  -DURAPOWER CHUCK
  Equipped with “DURAPOWER CHUCK” a new chuck* that provides a more sustained gripping force, to reduce the risk of a bur slipping compared to conventional models.
  *The chuck is the part of the handpiece that holds the bur (cutting tool). The new improved chuck mechanism has improved durability.

  -New quick-stop function
  A new design furnished with a high-speed rotation emergency stop function on the front and back of the air turbine head reduces the risk of intraoral entrapment and suck-back, enabling safer treatment.

  -New 4-port water spray
  Efficiently cools the entire bur without impairing visibility. Water injected from two directions allows for proper cooling of burs of varying lengths.


  -100° angle head
  Considering the physiological curves of the oral cavity (Curve of Spee and Curve of Wilson), the 100° angled head enables easier access and high-torque cutting for efficient treatment in the oral cavity.

  -Slip-resistant DURAGRIP coating
  The unique non-slip, non-scratch surface treatment improves durability and ensures a comfortable grip.

  -Wide Fitting
  This lineup features models that are compatible with couplings of all companies, and can be connected to units currently in use. With this design, you can easily use the ultimate NSK handpieces without being tied down to a particular unit.
  *Compatible couplings differ depending on the series.

  -Microfilter
  Microfilter to prevent particles from entering the water spray system to guarantee optimum water spray cooling at all times.

-The world’s first 45 degree contra angle, Ti-Max Z45L provides effortless access to hard-to-reach molars that a standard contra angle simply can’t match.
-The slim-form Ti-Max Z45L also offers excellent visibility and high operability, creating more space between adjacent teeth and the handpiece body.
-Ti-Max Z45L’s powerful and consistent cutting shortens treatment time for time-consuming sectioning and third-molar extractions compared to standard contra angles, dramatically reducing stress for both clinicians and patients.

Packing:
Each

Brochures
Ti-Max Z45L

• Product Features
• Specifications
• Usage Instruction

• Introdution of Ti-Max Z Contra-angle










•


-NSK have dramatically improved visibility and accessibility by minimising the head size, a key challenge with quintuple speed contra angles. NSK’s dedication to usability resulted in outstanding ergonomics and manoeuvrability.
-NSK has combined advanced design and world-class processing technology to create incredibly durable instruments.
-The gear is coated with special diamond-like carbon to make wear resistance up to five times greater than on previous models.
-NSK’s advanced technologies have boosted sterilisation resistance, delivering even better reliability for dental practices.

Packing:
Each
