NSK

-NSK DynaLED Turbine Handpieces are produced by NSK micro precision engineering resulting in high performance and long term reliability.
-These innovative Turbines include a dynamic integrated mini power generator which delivers long life, daylight quality LED illumination when connected to any standard non optic air tubing.
-Clinicians can instantly gain the advantage of LED illumination on their existing or new dental equipment.

Packing:
Each

• Product Features
• Specifications
• Usage Instruction

• Technology & Function:



  Visibility & Access

  - Visibility & Access:

  Improved visibility and direct access to the treatment field allows faster and more accurate preparations.

  - LED Durability :

  The LED light source is significantly more durability than quartz. Replicated daylight illumination quality.



  NSK’s Advanced LED

  - DynaLED delivers high intensity and stable LED illumination via advanced NSK mini electronic systems.

  - NSK Cellular Glass Optics guarantee emission of pure daylight quality illumination.

  - Clinicians can more comfortably control minimal invasion techniques due to increased oral visibility.



  NSK Long Life Micro Power Generator - High Efficiency and Long Term Durability

  - NSK has applied the very latest technologies and materials to achieve long term efficiency and reliability.

  - Micro power generator is electronically calculated to produce the correct power source for highly effective LED illumination.

  - The performance of the handpiece is not influenced by the micro power generator.

•


-The Innovative Air Turbine with Ultra Mini Head and Super Slim Body Shape.
-The NSK S-Max pico series has been developed for the operation of Minimal Intervention (M.I).
-The ultra mini head and super slim Handpieces design is the result of fine NSK precision engineering allowing a wider view of the operational field, and greater flexibility for dexterity.

Packing:
Each

• Product Features
• Specifications
• Usage Instruction

• Technology & Function:



  Size Specifications

  The ultra mini head delivers expanded operational visibility and greater flexibility. Patient comfort is increased.



  Interchangeable Cartridge

  Cartridges are easily replaced in your practice helping you reduce costs and down-time. The replacement cartridge incorporates the spray holes to guarantee cartridge and water spray always work well together.



  pico bur

  NSK has developed special ultra short shank burs to operate specifically with the pico handpiece. These high quality precision burs are concentric and durable. Use of NSK ultra short shank burs maximises the mini advantage of the pico handpiece.

• Head: Ultra Mini Head

  Power: 9W

  Rotation: 380,000-450,000 min-1

  Head Size: Ø8.6 x H 9.0 mm

  Water Spray: Single Spray

  Body Material: Stainless Steel


-The new rotor shape was developed using a state-of-the-art computer simulation and fluid analysis software. This rotor delivers a significant 6W boost in power from 20W to 26W.
-The handpiece becomes an extension of the operator and provides a cutting feel that facilitates more intricate operations.
-Its elegant, slim design is replete with the expertise and technology accumulated over decades by the handpiece experts at NSK.

Packing:
Each

Product Catalog
S-Max M Series

• Product Features
• Specifications
• Usage Instruction

• Technology & Function:



  Interchangeable Cartridge

  Cartridges are easily replaced in your practice helping you reduce costs and down-time. The replacement cartridge incorporates the spray holes to guarantee cartridge and water spray always work well together.



  Clean Head System

  The Clean Head System has an anti-suck back mechanism that stops blood and foreign matter from entering the head from the oral cavity. As a result, the ball bearings and mechanical parts last longer.



  Wide Fitting

  This lineup features models that are compatible with couplings of all companies, and can be connected to units currently in use. With this design, you can easily use NSK handpieces without being tied down to a particular unit.

  *Compatible couplings differ depending on the series.



  Quattro Spray

  Sprays more effectively over the entire bur for better cooling.



  All Stainless Body

  The handpiece body is stainless steel, making it corrosion resistant and sturdy. Its satin-like finish fits comfortably in your hand.

•


Varios 370 has been especially developed to offer a compact, portable control unit allowing easy installation into any dental unit. It is simple to operate and suitable for a variety of clinical procedures.

• Product Features
• Specifications
• Usage Instruction

•





  Includes:
  - 1 * Control Unit with Handpiece Cord
  - 1 * Control Unit Holder
  - 1 * AC Adaptor
  - 1 * Water Filter Set
  - 1 * Handpiece (VA2-LUX-HP)
  - 1 * Handpiece Holder
  - 1 * Foot Control (FC-71)
  - 1 * Water Supply Connector (120 V Only)
  - 3 * Scaling Tips (G4, G6, G8)
  - 3 * Tip Wrench with Torque Limiter




• Specifications
  Power Supply : AC 100-240 V 50/60 Hz
  Frequency : 28-32 kHz
  Max. Output : 11 W (G mode)
  Dimensions : W 80 x D 115 x H 32 mm (without Knob and Cord)
  Unit Weight : 0.43 kg (without Attachment)


•


- Water volume adjuster
- Stainless Steel Body
- Titanium coating
- Anti-Retraction Valve

Packing:
Each

• Product Features
• Specifications
• Usage Instruction

•

• 2.5V-4.0V
•


Titanium - Optic - with Water
Brighter and more comfortable.
Just by changing your coupling for an NSK LED coupling you can introduce the latest technology to your treatment and benefit from unmatched illumination.
Benefits of LED - Clearer LEDs generate natural daylight quality light which assures clearer vision when compared to halogen light.
Durable LED light sources are longer lasting and more durable than halogen bulbs.

Packing:
Each

• Product Features
• Specifications
• Usage Instruction

•

• 2.5V-4.0V
•

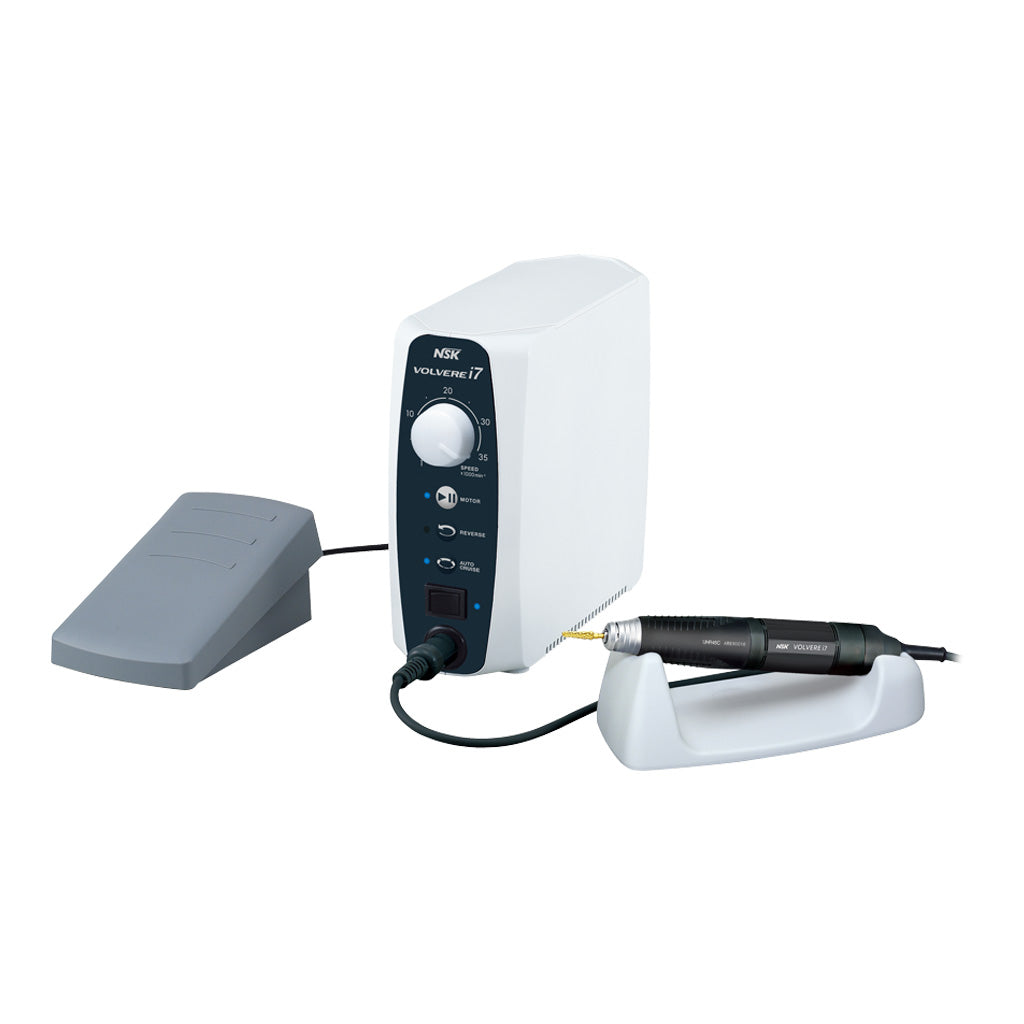

The VOLVERE i7 is another advance in NSK’s quest to provide dental technicians access to its globally renowned dental laboratory engines. The stylish VOLVERE i7 delivers a compact, advanced design,all essential features and excellent value for money.

Includes:
- VOLVERE i7 Control Unit
- Micromotor Handpiece
- Foot Control
- Handpiece Stand

• Product Features
• Specifications
• Usage Instruction

Optimum Performance and Precision

Lube Free Air Turbine Handpiece with LED and Water Coolant Spray
Features:
- 320,000 min-1
- Water coolant spray
- Requires no lubrication
- Swivel twist-free handpiece
- Low noise and vibration
- Unique dust-proof mechanism
- NSK LED is equivalent to daylight

• Product Features
• Specifications
• Usage Instruction

Optimum Performance and Precision

Lube Free Air Turbine Handpiece with LED and Water Coolant Spray
Features:
- 320,000 min-1
- Water coolant spray
- Requires no lubrication
- Swivel twist-free handpiece
- Low noise and vibration
- Unique dust-proof mechanism
- NSK LED is equivalent to daylight

• Product Features
• Specifications
• Usage Instruction

[Please contact us for the up-to-date price]

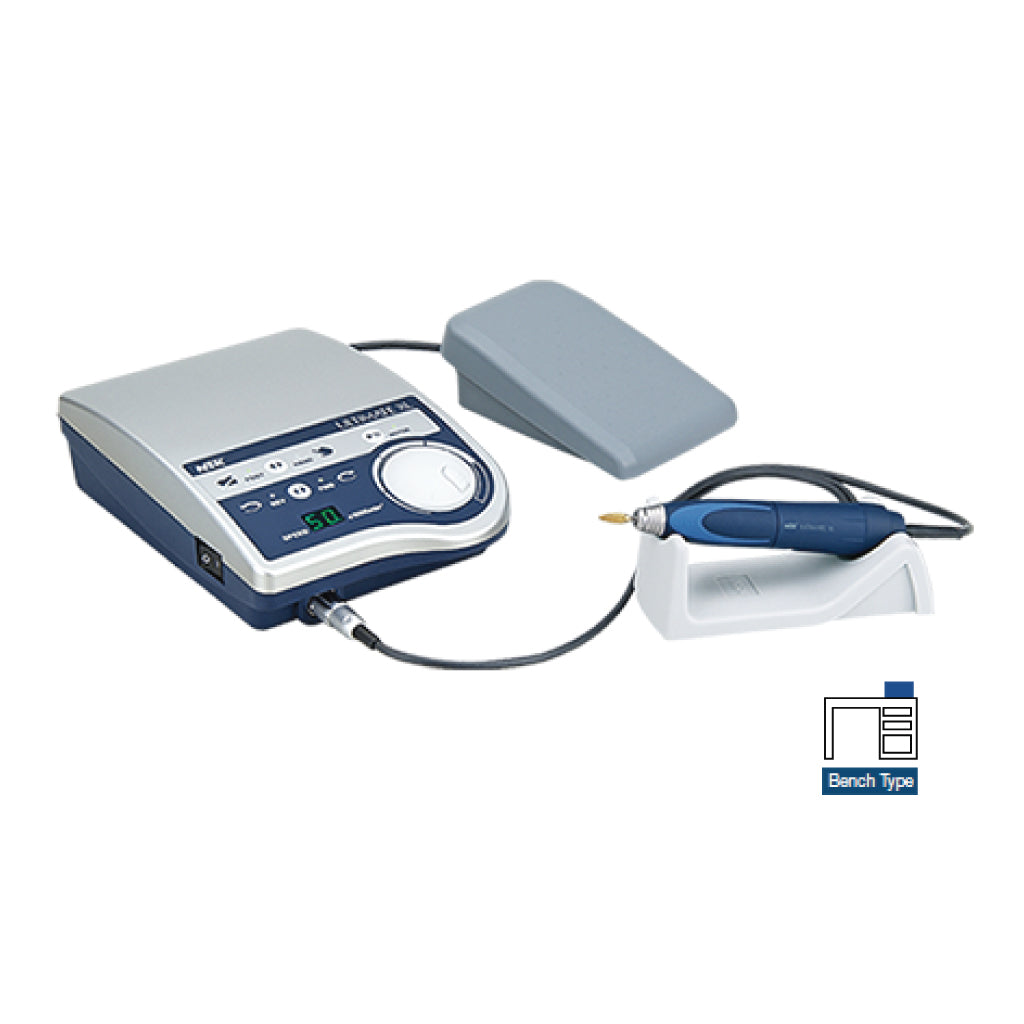

Experience Unprecedented Smoothness and Power
The world's leading laboratory micromotor just got better. The Ultimate range has evolved to run even smoother and be more powerful. With 180° vector control system, it assures you to work more efficiently and stress-free. The handpiece shape has been designed extremely carefully with ergonomy and functionality always being at the forefront of the designer's mind. The result is a handpiece which considerably reduces hand fatigue and makes it easier to work on even the most delicate pieces of work for extended periods of time. Experience the next-generation performance the Ultimate XL has to offer.

• Product Features
• Specifications
• Usage Instruction

[Please contact us for the up-to-date price]

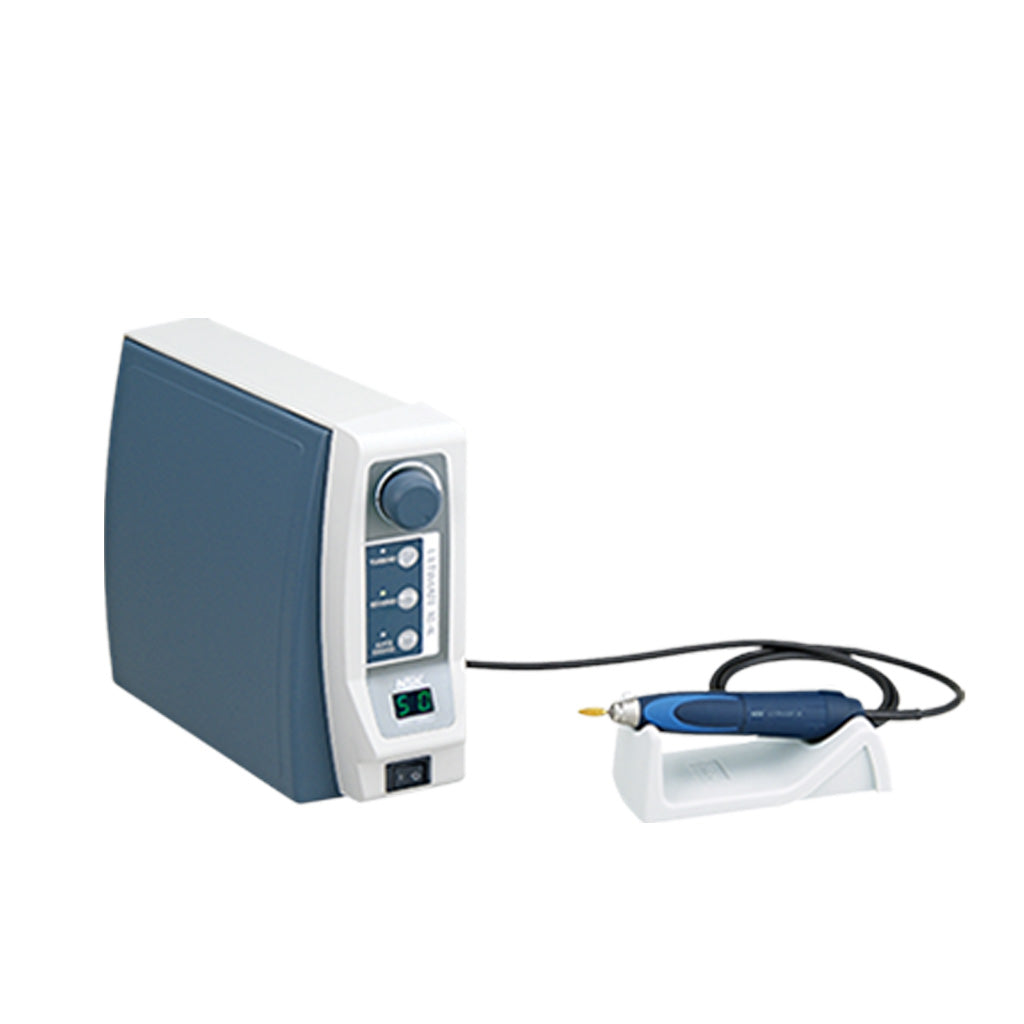

Experience Unprecedented Smoothness and Power
The world's leading laboratory micromotor just got better. The Ultimate range has evolved to run even smoother and be more powerful. With 180° vector control system, it assures you to work more efficiently and stress-free. The handpiece shape has been designed extremely carefully with ergonomy and functionality always being at the forefront of the designer's mind. The result is a handpiece which considerably reduces hand fatigue and makes it easier to work on even the most delicate pieces of work for extended periods of time. Experience the next-generation performance the Ultimate XL has to offer.

• Product Features
• Specifications
• Usage Instruction

[Please contact us for the up-to-date price]

Osseo 100 measures implant stability to support decision making on when to load an implant. Especially important when working with shorter treatment time or managing risk patients.

3-step Procedure

1. The MulTipeg™ is attached to the implant. It screws effortlessly into the implant’s internal threads. (approximately 6-8 Ncm of torque).

2. Just aim for the magnet on top of the MulTipeg™. Non-invasive, objective, accurate and repeatable. The peg is responding by magnetic pulses and vibrates due to the stiffness in the contact area between the bone and the implant surface.

3. An ISQ value is generated and shown on the display. This reflects the level of stability on the universal ISQ scale – from 1 to 99. The higher the ISQ value, the more stable the implant.

Includes:
- Osseo 100 Instrument
- MulTipeg Driver (MulTipeg™ is not included, sold separately.)
- Mains adapter and plugs

• Product Features
• Specifications
• Usage Instruction
