Implants

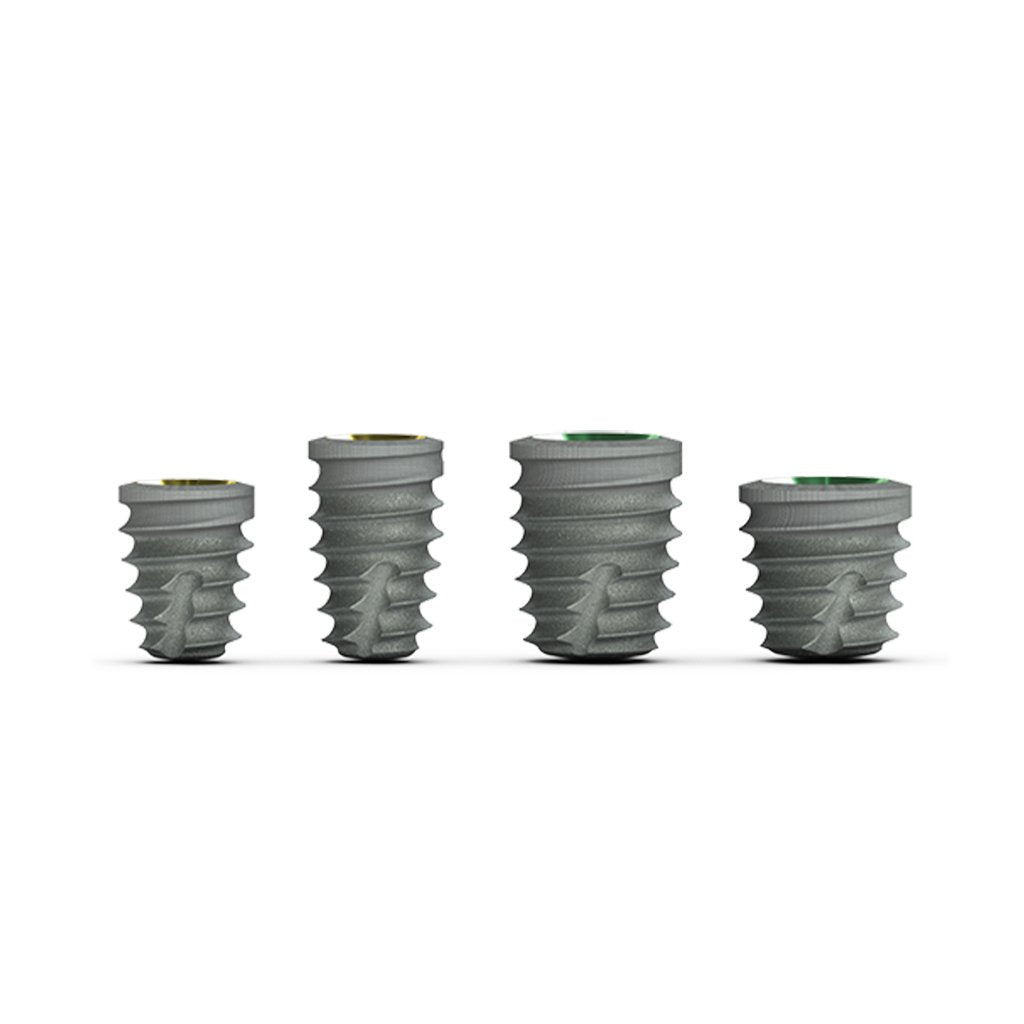

Now available in 6mm and 7.5mm lengths, offering a solution for cases with limited vertical bone height and minimizing the need for bone grafting. The implant design features an aggressive thread profile and tapered body for primary stability, even in compromised situations. A platform switched, dual-affinity, Laser-Lok® surface offers crestal bone retention and a connective tissue attachment for flexible placement in uneven ridges.

Packing:
Each

Catalog & Manuel
TSL Catalog & Manuel

Literature
Laser Lok Summary

Catalog
Prosthetic Catalog

• Product Features
• Specifications
• Usage Instruction

• Prosthetic Connection:
  (Body Diameter 4.6mm): 3.5mm ;
  (Body Diameter 5.8mm): 4.5mm
  Laser-Lok Zone:
  1.8mm
  Apical Diameter:
  (Body Diameter 4.6mm) : 3.7mm ;
  (Body Diameter 5.8mm) : 4.9mm
  Platform switch:
  (Body Diameter 4.6mm) : 0.5mm ;
  (Body Diameter 5.8mm) : 0.6mm


•

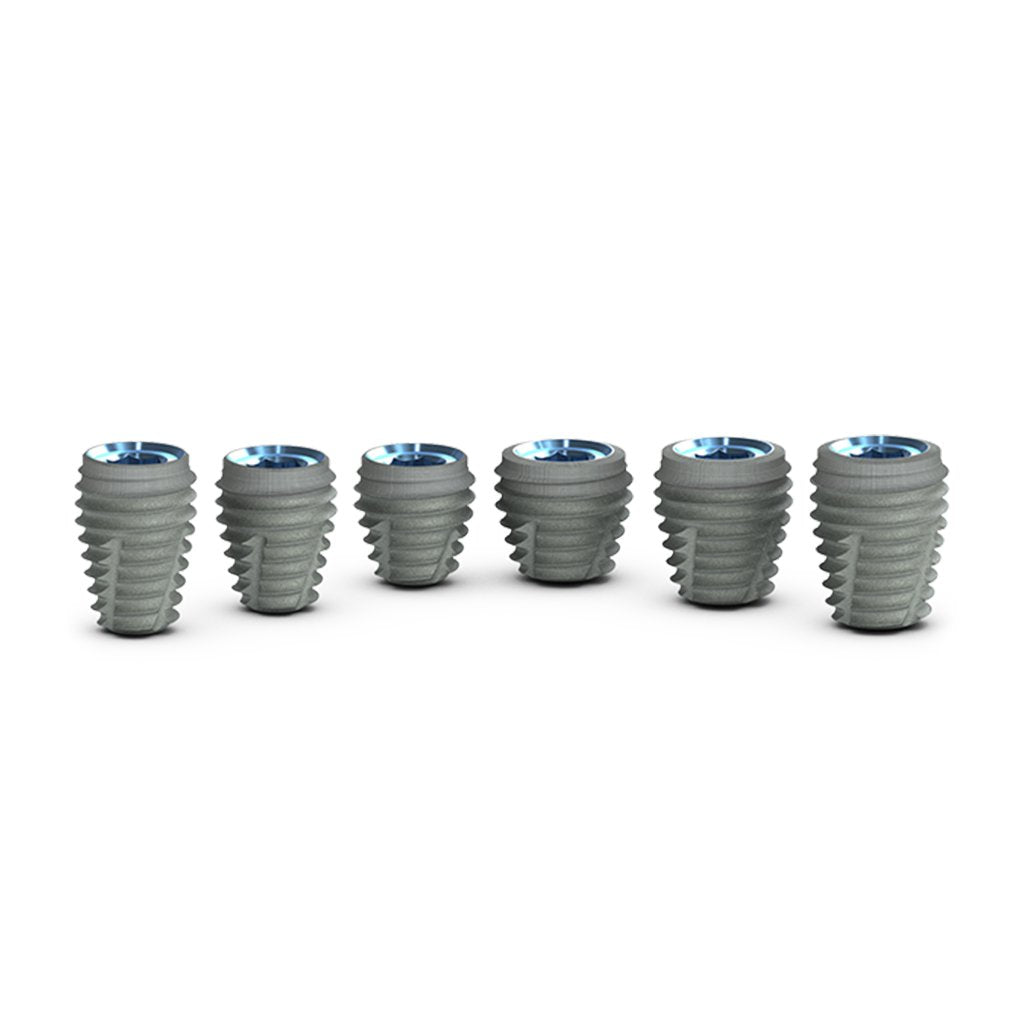

Tapered IM implants are designed for posterior implant restorations. Available in 7 and 8mm diameters, the implant design features deep aggressive threads for compressive bone loading and primary stability. The reduced collar diameter ensures the implant doesn’t deviate from its intended placement location in extraction sites. Tapered IM implants platform switch to a 5.7mm prosthetic connection.

Packing:
Each

Catalog & Manuel
Tapered IM Catalog & Manuel

Literature
Laser Lok Summary

Catalog
Prosthetic Catalog

• Product Features
• Specifications
• Usage Instruction

• Prosthetic Connection:
  5.7mm
  Laser-Lok Zone:
  1.8mm
  Apical Diameter:
  (Body Diameter 7.0mm): 4.9mm ;
  (Body Diameter 8.0mm): 5.9mm
  Platform Diameter:
  5.7mm


•

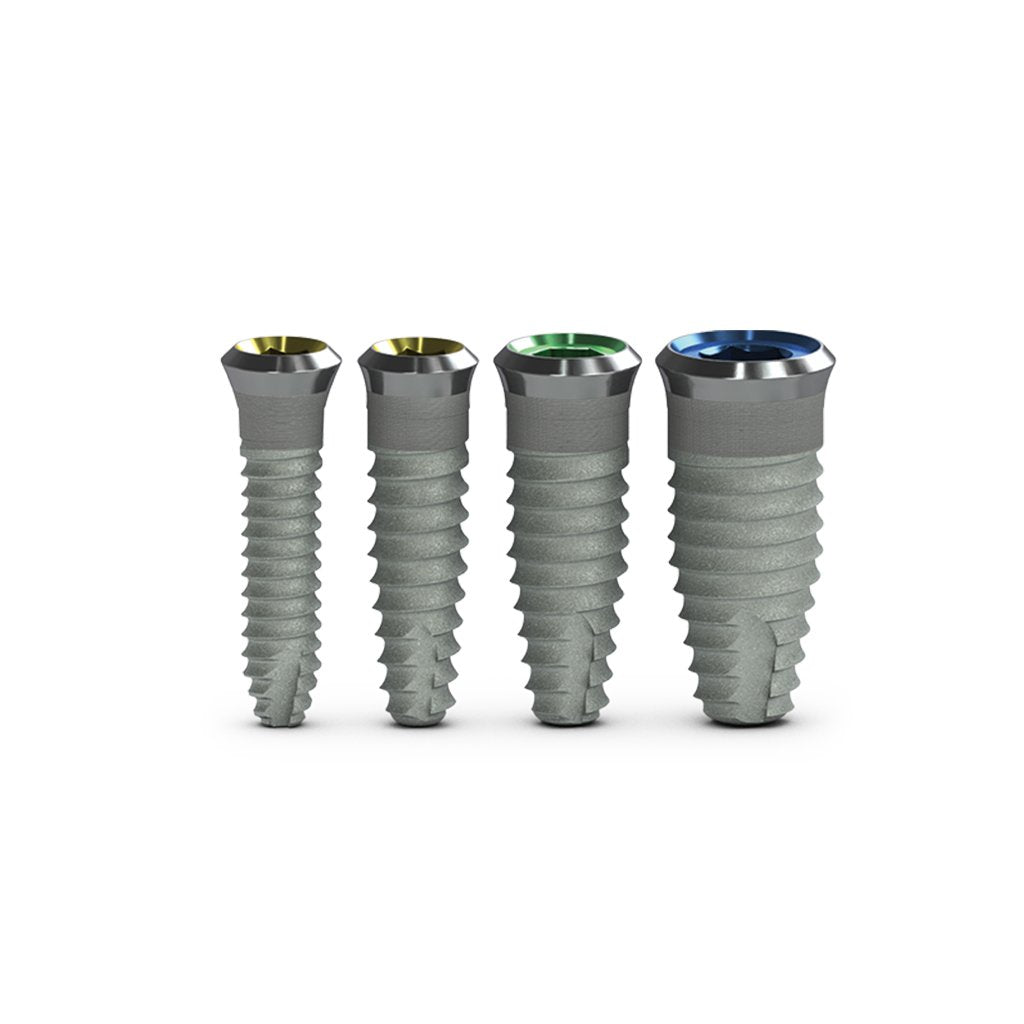

Tapered Tissue Level dental implants feature a 1.8mm transmucosal collar for one stage procedures and Laser-Lok surface technology to inhibit epithelial downgrowth, attach connective tissue and create a biologic seal around the implant. Tapered Tissue Level dental implants are available in 4 diameters including the only 3mm tissue level implants currently available for tight spaces.

Packing:
Each

Catalog & Manuel
Tissue Level Catalog & Manuel

Literature
Laser Lok Summary

Catalog
Prosthetic Catalog

• Product Features
• Specifications
• Usage Instruction

•


• Platform Diameter:
  (Body Diameter 3.0, 3.8mm): 3.5mm ;
  (Body Diameter 4.6mm): 4.5mm ;
  (Body Diameter 5.8mm): 5.7mm
  Laser-Lok Zone:
  2.0mm
  Apical Diameter:
  (Body Diameter 3.0mm) : 2.0mm
  (Body Diameter 3.8mm) : 2.8mm
  (Body Diameter 4.6mm) : 3.1mm
  (Body Diameter 5.8mm) : 3.9mm
  Collar Height:
  2.3mm
  Bevel Height:
  0.5mm


•

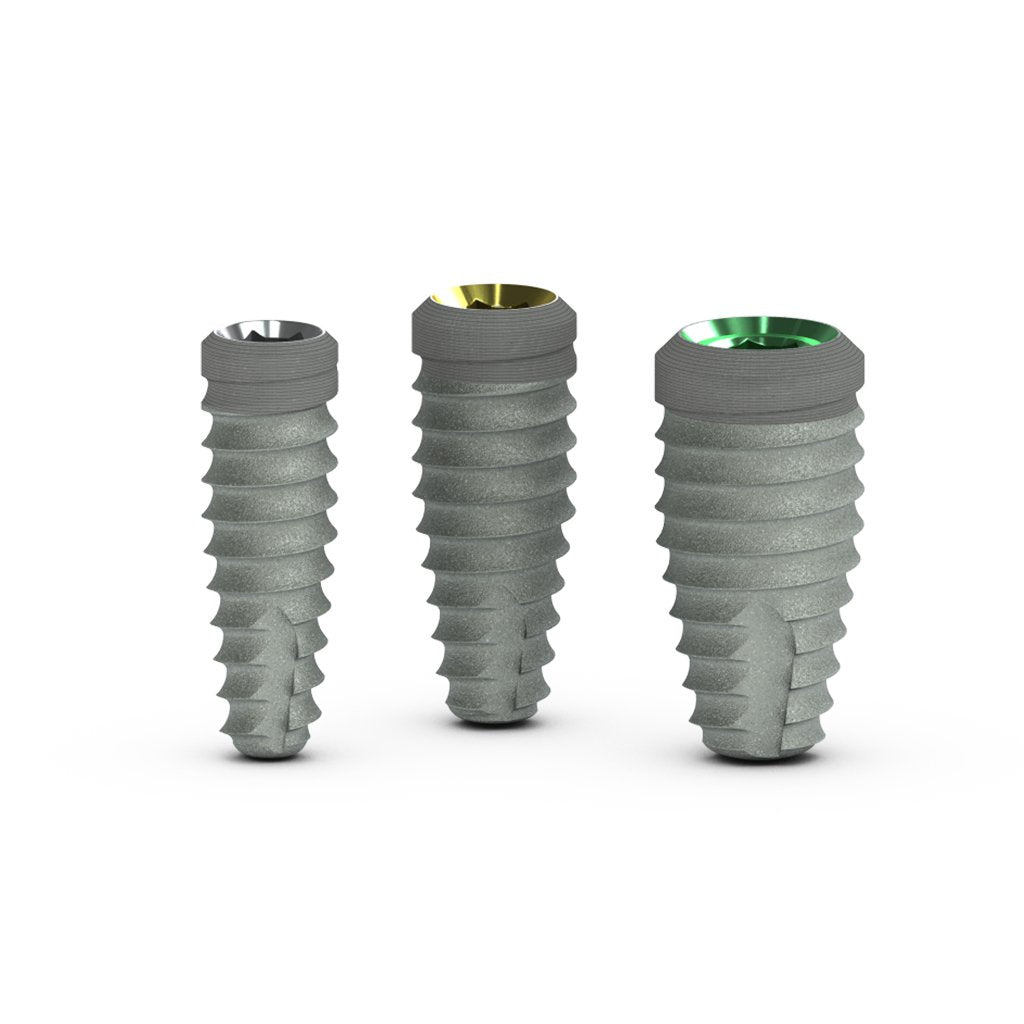

The Tapered Plus dental implant system offers all the great benefits of BioHorizons highly successful Tapered Internal system plus it features a Laser-Lok treated beveled-collar for bone and soft tissue attachment and platform switching designed for increased soft tissue volume.

Packing:
Each

Catalog & Manuel
Tapered HD Surgical System

Literature
Laser Lok Summary

Catalog
Prosthetic Catalog

• Product Features
• Specifications
• Usage Instruction

• Prosthetic Connection:
  (Body Diameter 3.8mm): 3.0mm ;
  (Body Diameter 4.6mm): 3.5mm ;
  (Body Diameter 5.8mm): 4.5mm
  Laser-Lok Zone:
  1.8mm
  Apical Diameter:
  (Body Diameter 3.8mm) : 2.8mm
  (Body Diameter 4.6mm) : 3.1mm
  (Body Diameter 5.8mm) : 4.5mm


•

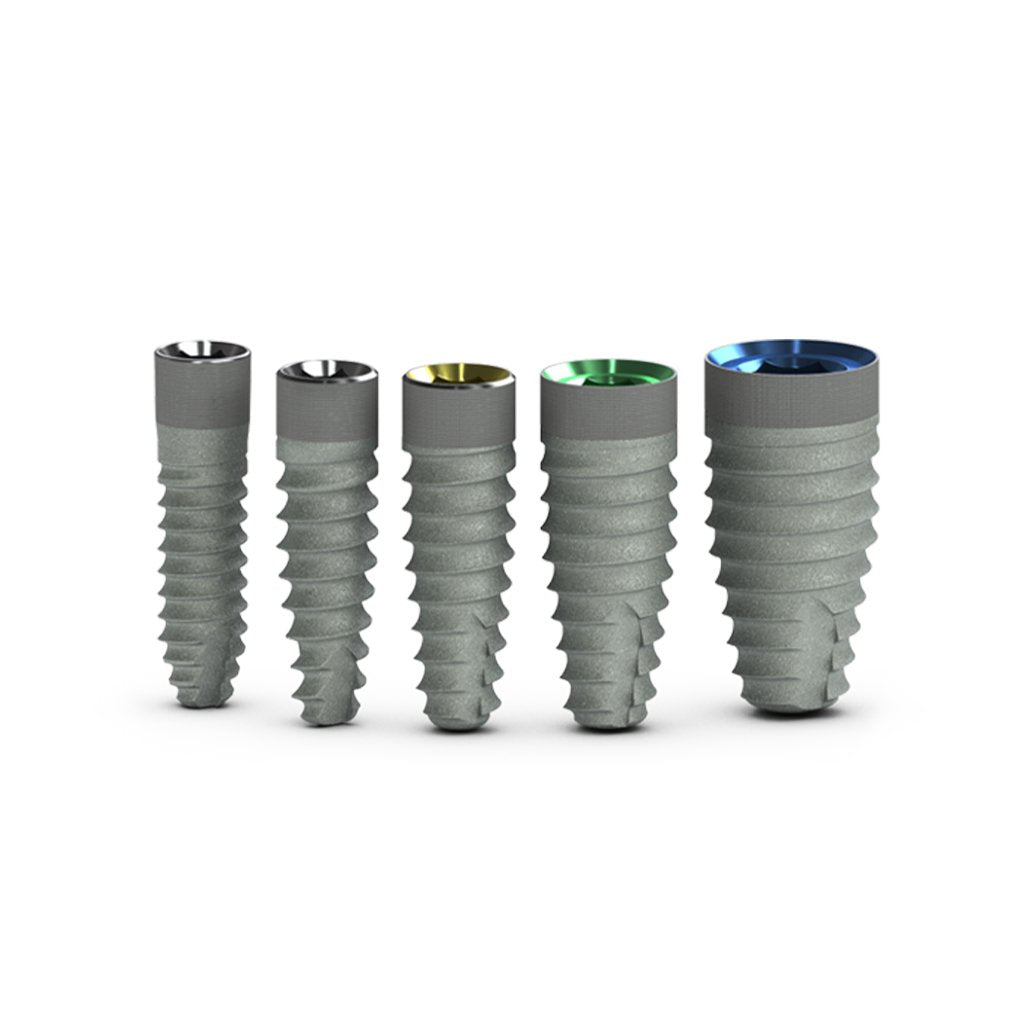

The Tapered Internal 3.0/ 3.4 dental implant system offers all the great benefits of BioHorizons highly successful Laser-Lok 3.0 dental implant, but features a buttress thread on an anatomically tapered body with a Laser-Lok treated collar for bone and soft tissue attachment.

Packing:
Each

Catalog & Manuel
Tapered HD Surgical System

Literature
Laser Lok Summary

Catalog
Prosthetic Catalog

• Product Features
• Specifications
• Usage Instruction

• Prosthetic Connection:
  3.0mm
  Laser-Lok Zone:
  (Body Diameter 3.0mm): 2.1mm ;
  (Body Diameter 3.4mm): 1.8mm
  Apical Diameter:
  (Body Diameter 3.0mm) : 2.0mm
  (Body Diameter 3.4mm) : 2.4mm


•

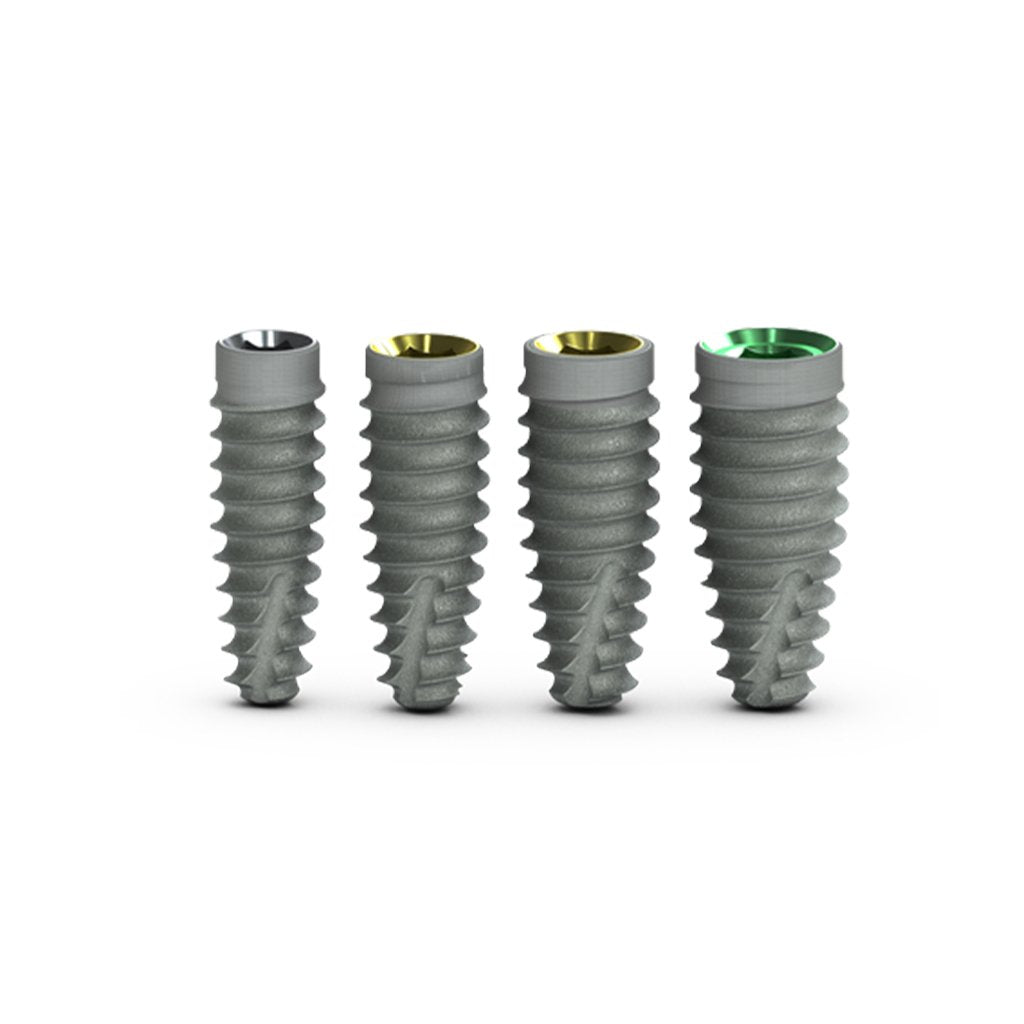

BioHorizons new Tapered Pro implants feature aggressive, self-tapping buttress threads that provide progressive insertion torque and compressive loading for primary stability. The platform-switched Laser-Lok collar creates a connective tissue attachment and retains crestal bone. Tapered Pro implants use the existing BioHorizons conical internal hex connections, maintaining compatibility with existing components and can be placed using existing BioHorizons Tapered surgical kits.

Packing:
Each

Catalog & Manuel
Tapered Pro Surgical System

Literature
Laser Lok Summary

• Product Features
• Specifications
• Usage Instruction

• Prosthetic Connection:
  (Body Diameter 3.8mm): 3.0mm ;
  (Body Diameter 4.2,4.6mm): 3.5mm ;
  (Body Diameter 5.2mm): 4.5mm
  Laser-Lok Zone:
  1.8mm
  Apical Diameter:
  (Body Diameter 3.0mm) : 2.8mm
  (Body Diameter 4.2mm) : 3.0mm
  (Body Diameter 4.6mm) : 3.2mm
  (Body Diameter 5.2mm) : 3.3mm


•

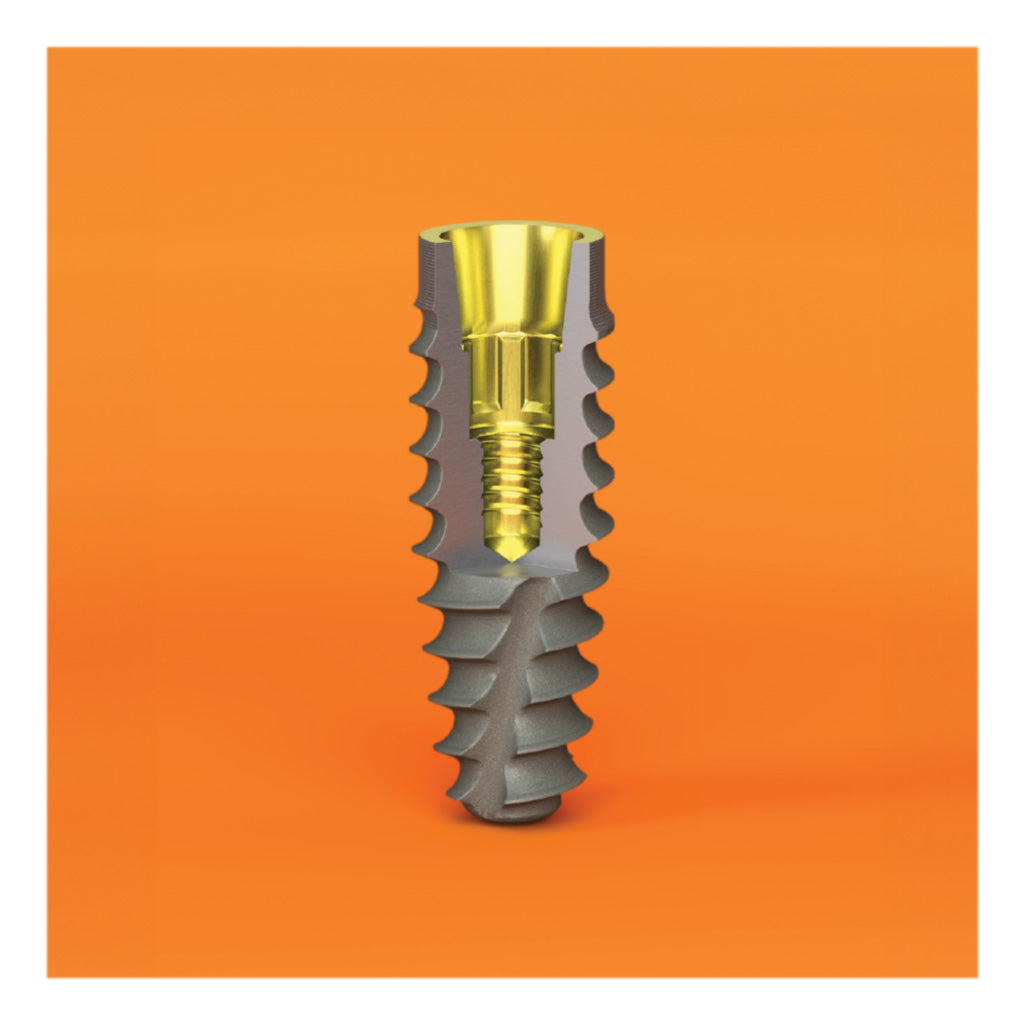

Based on the proven deep conical design from CONELOG®, and the Tapered Pro body, BioHorizons Tapered Pro Conical's design features provide a predictable solution for immediate treatment. It is designed for surgical efficiency with a best-in-class conical connection.
Length:  7.5mm
Prosthetic Connection:  Regular

Packing:
Each

Catalog & Manuel
Tapered Pro Conical Catalog

• Product Features
• Specifications
• Usage Instruction

• Length:  7.5mm
  Prosthetic Connection:  Regular
  Platform Switch:
  (Body Diameter 4.2mm) : 0.6mm
  (Body Diameter 4.6mm) : 0.8mm
  (Body Diameter 5.2mm) : 1.0mm
  Apical Diameter:
  (Body Diameter 4.2mm) : 3.3mm
  (Body Diameter 4.6mm) : 3.7mm
  (Body Diameter 5.2mm) : 4.2mm

•


Based on the proven deep conical design from CONELOG®, and the Tapered Pro body, BioHorizons Tapered Pro Conical's design features provide a predictable solution for immediate treatment. It is designed for surgical efficiency with a best-in-class conical connection.

Packing:
Each

Catalog & Manuel
Tapered Pro Conical Catalog

• Product Features
• Specifications
• Usage Instruction

• Platform Switch:
  Narrow: 0.3mm ;
  Regular(Body Diameter 3.8,4.2mm): 0.4mm ;
  Regular(Body Diameter 4.6,5.2mm): 0.6mm
  Apical Diameter:
  (Body Diameter 3.3mm) : 2.4mm
  (Body Diameter 3.8mm) : 2.8mm
  (Body Diameter 4.2mm) : 3.0mm
  (Body Diameter 4.6mm) : 3.2mm
  (Body Diameter 5.2mm) : 3.3mm

•
