Now available in 6mm and 7.5mm lengths, offering a solution for cases with limited vertical bone height and minimizing the need for bone grafting. The implant design features an aggressive thread profile and tapered body for primary stability, even in compromised situations. A platform switched, dual-affinity, Laser-Lok® surface offers crestal bone retention and a connective tissue attachment for flexible placement in uneven ridges.
Packing:
Each
Catalog & Manuel
TSL Catalog & Manuel
Literature
Laser Lok Summary
Catalog
Prosthetic Catalog
-
-
Prosthetic Connection:
(Body Diameter 4.6mm): 3.5mm ;
(Body Diameter 5.8mm): 4.5mm
Laser-Lok Zone:
1.8mm
Apical Diameter:
(Body Diameter 4.6mm) : 3.7mm ;
(Body Diameter 5.8mm) : 4.9mm
Platform switch:
(Body Diameter 4.6mm) : 0.5mm ;
(Body Diameter 5.8mm) : 0.6mm -

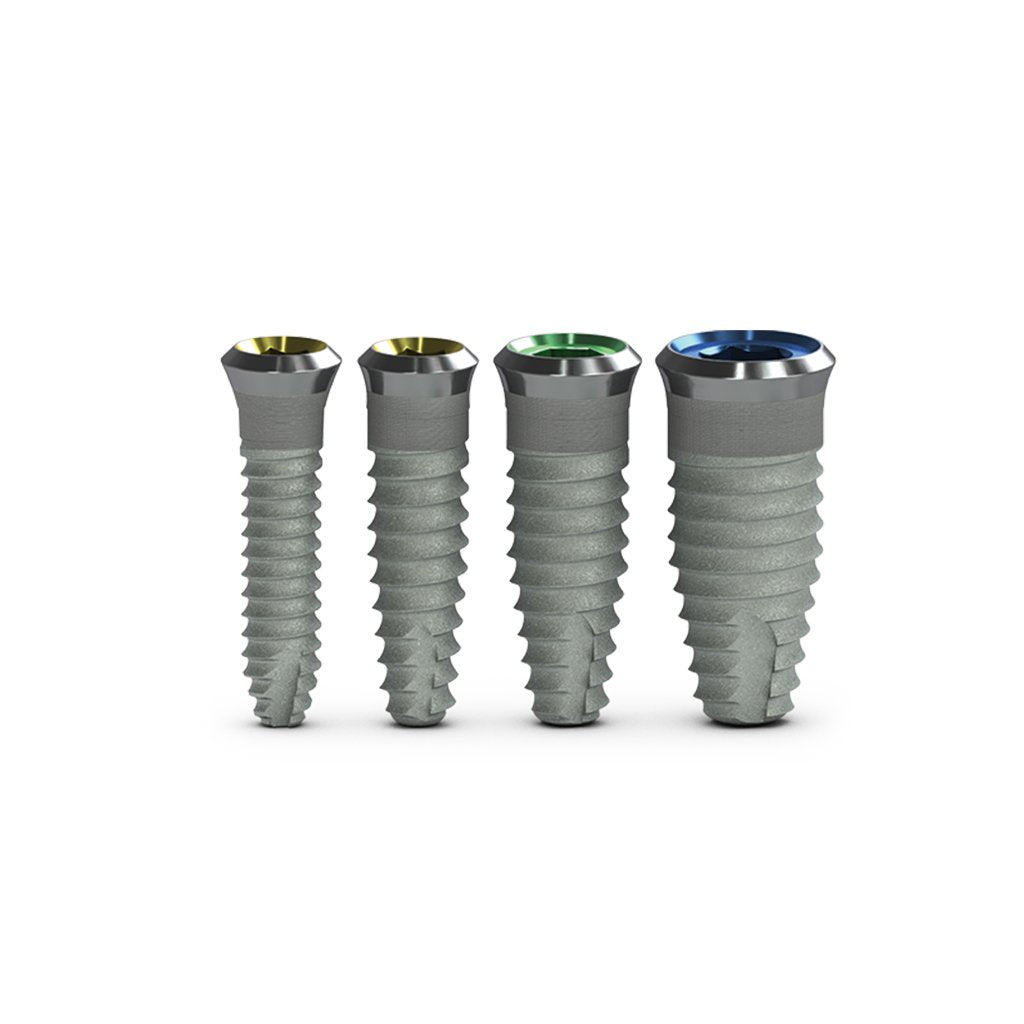

Tapered Tissue Level dental implants feature a 1.8mm transmucosal collar for one stage procedures and Laser-Lok surface technology to inhibit epithelial downgrowth, attach connective tissue and create a biologic seal around the implant. Tapered Tissue Level dental implants are available in 4 diameters including the only 3mm tissue level implants currently available for tight spaces.
Packing:
Each
Catalog & Manuel
Tissue Level Catalog & Manuel
Literature
Laser Lok Summary
Catalog
Prosthetic Catalog
-
-
Platform Diameter:
(Body Diameter 3.0, 3.8mm): 3.5mm ;
(Body Diameter 4.6mm): 4.5mm ;
(Body Diameter 5.8mm): 5.7mm
Laser-Lok Zone:
2.0mm
Apical Diameter:
(Body Diameter 3.0mm) : 2.0mm
(Body Diameter 3.8mm) : 2.8mm
(Body Diameter 4.6mm) : 3.1mm
(Body Diameter 5.8mm) : 3.9mm
Collar Height:
2.3mm
Bevel Height:
0.5mm -
The Tapered Plus dental implant system offers all the great benefits of BioHorizons highly successful Tapered Internal system plus it features a Laser-Lok treated beveled-collar for bone and soft tissue attachment and platform switching designed for increased soft tissue volume.
Packing:
Each
Catalog & Manuel
Tapered HD Surgical System
Literature
Laser Lok Summary
Catalog
Prosthetic Catalog
-
-
Prosthetic Connection:
(Body Diameter 3.8mm): 3.0mm ;
(Body Diameter 4.6mm): 3.5mm ;
(Body Diameter 5.8mm): 4.5mm
Laser-Lok Zone:
1.8mm
Apical Diameter:
(Body Diameter 3.8mm) : 2.8mm
(Body Diameter 4.6mm) : 3.1mm
(Body Diameter 5.8mm) : 4.5mm
-
